Levolor Blind Parts Diagram And Repair Guide 2026
Repairing Levolor window treatments in 2026 requires a precise understanding of the proprietary hardware systems used across their diverse product lines, ranging from classic aluminum horizontal blinds to sophisticated cellular shades. Identifying the correct internal components is the primary hurdle for homeowners and contractors alike. This guide clarifies the specific mechanical anatomy of Levolor systems to ensure successful maintenance and restoration without unnecessary replacement costs.
Anatomy of the Levolor Headrail System
The headrail acts as the command center for your blind. Regardless of the slat material, most Levolor blinds manufactured through early 2026 utilize a standardized headrail design that houses the lift mechanism, cord lock, and tilt mechanism.
Understanding the internal layout is essential before attempting any disassembly. The primary components inside the headrail include the following:
- Lift Cord Spools: These cylindrical components manage the winding and unwinding of the lift strings. Wear here often results in uneven lifting.
- Cord Lock Mechanism: This is the friction-based brake that keeps the blinds at your desired height. In 2026, most Levolor units use a gravity-fed locking cam.
- Tilt Gear/Wand Mechanism: This gear assembly translates the rotation of your wand or tilt cord into the tilting motion of the slats.
- End Caps: These secure the headrail to the wall or ceiling brackets and keep the internal components centered.
Identifying Component Failures by Blind Type
Levolor products are categorized by distinct mechanical profiles. Identifying your specific model is the first step in sourcing replacement parts.
Aluminum Horizontal Blinds

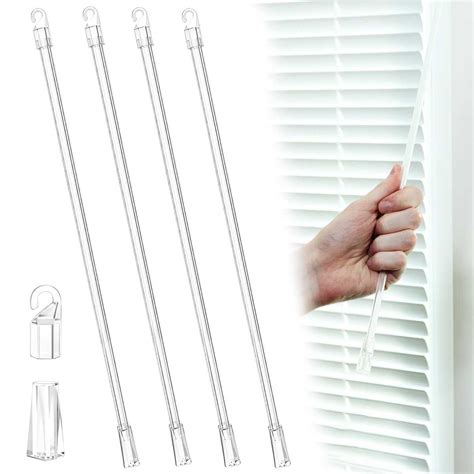

These are characterized by the iconic "snap-in" plastic components. Common failure points in 2026 include the plastic wand tilters, which can become brittle due to prolonged UV exposure, and the cord lock pulleys, which may develop grooves over time, causing the lift cord to fray or jam.
Cellular and Pleated Shades
Cellular shades rely on tension-based systems. The most common point of failure is the bottom rail end cap or the cord tensioner located at the base of the window frame. If your shade is tilting or failing to retract evenly, the issue is typically a slipped cord knot or a worn-out cord lock toggle within the headrail.
Wood and Faux Wood Blinds
These systems use a "box" headrail design. Because these blinds are heavier, the internal tilt gears are made of reinforced nylon or metal. If your wand spins without tilting the slats, the gear teeth have likely stripped, requiring a full replacement of the tilt mechanism assembly.
Guide to Parts of a Blind (with Diagram) - Homenish | Parts of window ...
Technical Comparison of Replacement Hardware
When sourcing parts for your 2026 repairs, use the following table to match your blind type to the necessary hardware requirements.
| Blind Type | Primary Wear Component | Replacement Strategy | Compatibility Note |
|---|---|---|---|
| Aluminum (1-inch) | Wand Tilter | Replace entire gear assembly | Requires specific slot width |
| Cellular Shade | Cord Lock Toggle | Replace internal spring unit | Tension must be calibrated |
| Faux Wood (2-inch) | Tilt Gear | Swap nylon gear housing | Ensure shaft shape match |
| Vinyl Mini Blind | Cord Lock Pulley | Replace whole cord lock | Check headrail profile depth |
Step-by-Step Maintenance and Repair Workflow
Executing repairs on Levolor hardware requires patience and the correct tools, typically a flat-head screwdriver, needle-nose pliers, and a set of nylon picks to avoid scratching the headrail finish.
- Removal and Safety: Start by releasing the headrail from the installation brackets. Most Levolor brackets from the last decade feature a front-locking lever; push up or pull forward to release the rail.
- Headrail Access: Use your pliers to gently pry off the plastic end caps. If the end caps are painted metal, be careful not to chip the finish.
- Component Extraction: Slide the internal components out of the track. If a part is stuck, do not force it. Inspect the area for any tangled lift cords that may be creating tension.
- Part Matching: Compare your removed part against the standard Levolor OEM (Original Equipment Manufacturer) specifications. Even a 2mm difference in gear diameter will cause the mechanism to bind.
- Reassembly: Insert the new component and ensure the lift cords are routed through the cord lock and over the pulleys without overlapping. Overlapping cords are the leading cause of "crooked" blind operation.
- Tension Verification: Once reinstalled, pull the cords slowly to ensure the lock engages at multiple points along the drop height.
Troubleshooting Common Mechanical Issues
If your blinds remain non-functional after parts replacement, perform a diagnostic check on the installation environment.
Environmental Factors Affecting Operation
Thermal Degradation: Plastic components inside the headrail can warp when exposed to extreme heat from direct sunlight. If your parts appear distorted, replace them with UV-stabilized nylon alternatives.
Cord Path Obstruction: Ensure the cords are not rubbing against the headrail edge. Use a small amount of silicone-based lubricant on the pulley wheels to reduce friction.
Weight Imbalance: If your blind is too heavy for the existing cord lock, the internal teeth may fail to bite into the cord. Ensure the bottom rail is balanced and the lift strings are not tangled behind the slats.
Frequently Asked Questions
How do I identify the exact model of my Levolor blind? Look for the manufacturing sticker located on the inside top of the headrail. This sticker contains the production date, model number, and specific build specifications necessary for ordering exact-match parts.
Can I replace a cord lock without removing the entire blind? While theoretically possible, it is highly discouraged. Forcing a repair while the blind is mounted often results in broken mounting brackets and uneven cord tension, making the blind difficult to operate or unsafe.
Are parts for older Levolor blinds compatible with 2026 models? In many cases, yes, but engineering updates have occurred. Always cross-reference your specific part number with the current 2026 catalog to ensure the pin diameters and mounting screw holes align with your headrail version.
What causes my blinds to tilt unevenly? Uneven tilting is almost always caused by a stripped tilt gear or a disconnected cord ladder. Check the gear first; if the teeth are intact, ensure the ladder strings are securely attached to the drum inside the headrail.
Why does my cord lock refuse to hold the blind at the desired height? This is typically due to a worn cam or a weakened tension spring within the cord lock assembly. Over time, the cord creates grooves in the plastic lock, preventing a secure grip, which necessitates a full replacement of the cord lock module.
Expert Recommendations for Long-Term Functionality
To extend the lifespan of your window treatments through 2027 and beyond, adopt a bi-annual maintenance routine. Dust accumulation within the headrail acts as an abrasive, accelerating the wear of gears and pulleys. Using a compressed air canister to clear the headrail during your semi-annual cleaning will significantly reduce the likelihood of mechanical failure. If you are replacing multiple components, consider updating the entire lift system to a modern continuous cord loop or cordless mechanism, which minimizes the number of moving parts prone to breakage.
For those requiring specialized assistance or authentic OEM replacement parts, contact your local window treatment service center or authorized Levolor dealer. Ensure you have your model number and dimensions ready to facilitate an accurate parts match.
