Comprehensive Guide To The Layout Of Ships: Modern Maritime Architecture And Vessel Design For 2026
The layout of a ship governs its operational efficiency, structural integrity, crew safety, and passenger experience. Whether managing a commercial container vessel, a specialized offshore support ship, or a contemporary cruise liner, naval architects and marine engineers must balance hydrostatic stability with functional zoning. As the maritime industry advances through 2026, stringent environmental mandates, digital automation, and optimized hydrodynamic profiles continue to reshape traditional vessel arrangements.

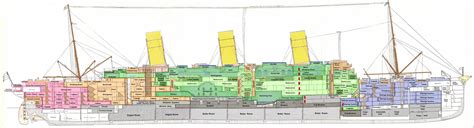

Fundamental Structural Zones of Modern Marine Vessels
Naval architecture divides a ship into distinct longitudinal and transverse zones to maximize structural strength and streamline cargo or passenger movement. Understanding these primary zones is essential for regulatory compliance under the International Convention for the Safety of Life at Sea (SOLAS) and efficient day-to-day shipboard management.
- Fore Peak and Bow Region: Located at the extreme forward section of the hull, this zone houses the anchor chain locker, bow thrusters, and collision bulkhead. Its specialized shape minimizes wave resistance while maximizing buoyancy to lift the vessel over oncoming swells.
- Cargo Holds or Passenger Superstructure: Occupying the midship body, this is the largest volume of the vessel. In cargo ships, it features reinforced hatch covers, cell guides, and tween decks. In passenger ships, this zone contains staterooms, public amenities, and vertical fire zones.
- Engine Room and Machinery Spaces: Positioned typically aft or amidships, this complex houses the main propulsion engines, auxiliary generators, fuel purification systems, and ballast water treatment plants.
- Aft Peak and Stern Region: Containing the steering gear compartment, rudder mechanisms, and propeller shafts, the stern is engineered to optimize water flow into the propulsion system while housing emergency towing equipment.
Deck-by-Deck Structural Hierarchy and Functional Zoning
A vessel's vertical layout consists of multiple levels designed to isolate hazards, manage weights, and maintain clear transit corridors. The nomenclature of decks varies slightly by vessel type, but standard engineering conventions apply universally across the commercial fleet.
| Deck Designation | Primary Function and Structural Role | Key Equipment and Infrastructure |
|---|---|---|
| Navigation Bridge Deck | Command center for vessel navigation, communication, and dynamic positioning. | Radar systems, ECDIS, conning displays, VHF radios, and weather facsimile units. |
| Boat / Accommodation Deck | Living quarters for officers and crew, along with primary lifesaving deployment stations. | Cabins, mess halls, hospital, ship office, lifeboats, and davits. |
| Main Deck / Weather Deck | The primary continuous structural deck exposed to the elements; resists longitudinal bending. | Mooring winches, cargo cranes, hatch covers, and ventilation trunking. |
| Tween Decks / Intermediate Decks | Horizontal subdivisions within cargo holds to separate different grades or types of freight. | Lashing points, intermediate bulkhead doors, and lighting circuits. |
| Tank Top / Inner Bottom | The top of the double bottom structure, forming the floor of the engine room and cargo holds. | Bilge wells, fuel oil tanks, ballast tanks, and structural framing floors. |
Viking cruise ship layout 60 photos - Cappadociaconcepttour.com
Hydrodynamic Layout Considerations and Stability Management
The spatial arrangement of internal weights directly dictates a ship's center of gravity (KG) and metacentric height (GM). Naval architects utilize advanced computer-aided design (CAD) and computational fluid dynamics (CFD) modeling to ensure that the layout prevents dangerous list or excessive rolling periods.
Stability Management Principle: The distribution of heavy machinery, bunker fuel, and ballast water must be continuously monitored via Loading Computers. Maintaining a positive GM ensures the vessel has adequate restoring moments when subjected to beam winds or severe wave action, adhering strictly to the 2026 IMO intact stability criteria.
Transverse and Longitudinal Bulkheads
Watertight bulkheads divide the interior hull into independent compartments. If the outer hull is breached, these barriers prevent progressive flooding and subsequent sinking. Modern ship layouts incorporate double-hull configurations, particularly for oil tankers and bulk carriers, providing an internal buffer zone that protects cargo tanks from grounding damage.
Engine Room Layout and Propulsion Architecture
The engine room is the functional heart of any vessel. Its layout is governed by strict safety rules regarding fire protection, noise attenuation, and ergonomic access for maintenance personnel.
- Main Propulsion Plant: Positioned on the centerline above the tank top, coupling low-speed two-stroke diesel engines or dual-fuel LNG engines directly to the propeller shaft, or driving electric azimuth thrusters.
- Auxiliary Power Generation: High-capacity diesel generators arranged on upper engine room platforms to supply electrical power for hotel loads, cargo refrigeration, and bow thrusters.
- Purification and Separation Room: Acoustically isolated compartments housing heavy fuel oil separators, lube oil purifiers, and bilge water separators to prevent marine pollution.
- Control Room (ECR): An air-conditioned, sound-insulated space overlooking the main machinery, equipped with integrated automation systems (IAS) for remote monitoring of temperatures, pressures, and fluid levels.
Comparative Layout Analysis: Container Ships vs. Cruise Liners
Different operational profiles demand vastly divergent internal and external layouts. The structural priorities of a freight-carrying vessel contrast sharply with those of a passenger-centric cruise ship.
| Architectural Feature | Container Ships | Cruise Liners |
|---|---|---|
| Primary Objective | Maximizing TEU (Twenty-Foot Equivalent Unit) cargo capacity and fast port turnaround. | Maximizing passenger revenue, comfort, entertainment, and safety evacuation efficiency. |
| Superstructure Location | Typically aft or offset forward to maximize unbroken deck space for container cell guides. | Forward and midships, rising high above the waterline to accommodate multi-level staterooms. |
| Internal Compartmentalization | Large open holds with minimal obstruction; extensive structural torsion box girders. | Dense subdivision with hundreds of fire-rated bulkheads, stair towers, and vertical evacuation zones. |
| Machinery Placement | Aft-mounted engine casing to maximize rectangular cargo footprint. | Diesel-electric podded propulsion systems positioned aft, often featuring decentralized auxiliary spaces. |
Step-by-Step Guide to Reading and Interpreting General Arrangement (GA) Plans
Navigating a ship's layout requires fluency in reading General Arrangement (GA) drawings. These standardized blueprints provide a comprehensive map of the vessel's architecture across three standard projection planes.
- Locate the Profile View: Examine the starboard or port side elevation to understand the overall length, depth, vertical deck stacking, and longitudinal placement of bulkheads and cargo spaces.
- Review the Deck Plans: Inspect the horizontal cross-sections taken at each deck level, starting from the navigation bridge down to the tank top, to trace corridor layouts, escape routes, and equipment rooms.
- Analyze the Cross-Sections (Transverse Sections): Look at the vertical slices through the hull to verify breadth, double-bottom depth, side-tank configuration, and the transverse positioning of machinery.
- Cross-Reference the Legend and Abbreviations: Check the drawing key for standard maritime symbols designating fire dampers, watertight doors, sounding pipes, and ventilation trunks.
- Verify Escape Routes and Muster Stations: Trace green safety signage pathways from working and living quarters to primary muster stations and embarkation decks to ensure compliance with emergency response protocols.
Frequently Asked Questions About Ship Layouts
What is the purpose of transverse bulkheads in a ship layout?
Transverse bulkheads divide the interior hull into watertight compartments to prevent progressive flooding in the event of a hull breach and to provide transverse structural rigidity.
Why are modern cruise ship superstructures built so high?
Cruise ship layouts prioritize passenger accommodation revenue, requiring multiple vertical tiers of staterooms, public lounges, and open-deck recreational amenities.
How does the engine room layout affect vessel stability?
The engine room contains the heaviest mechanical equipment on board; its low longitudinal and vertical placement is carefully calculated to maintain a safe center of gravity and optimal trim.
What is a General Arrangement (GA) plan?
A GA plan is a primary blueprint provided by naval architects that details the overall side profile, deck layouts, and cross-sections of a vessel, illustrating the exact placement of all structural and functional spaces.
Where is the bridge located on a modern container ship?
Modern container ship bridges are typically positioned either aft or one-third forward from the bow, depending on visibility requirements, container stack heights, and operational profiling.
How do double-hull layouts improve maritime safety?
Double-hull configurations provide an inner barrier separated by a void space from the outer shell, drastically reducing the risk of cargo spill during minor groundings or collisions.
