Master Guide To Weather Doppler Radar In Southern California For 2026
Southern California features some of the most diverse and complex microclimates in the United States, ranging from coastal marine layers and urban sprawl to sweeping deserts and high mountain ranges. Tracking precipitation, wind shear, and severe weather across this rugged topography requires a deep understanding of the region's operational Doppler radar network. In 2026, forecasters, emergency managers, and residents rely on a tightly integrated array of radar installations to monitor atmospheric conditions down to the neighborhood level.
Understanding the Southern California Doppler Radar Architecture
The backbone of meteorological observation across Southern California consists of several National Weather Service (NWS) Weather Surveillance Radar-1988 Doppler (WSR-88D) systems, supplemented by Federal Aviation Administration (FAA) terminal Doppler units. These systems transmit pulses of microwave energy into the atmosphere, measuring the reflected energy (reflectivity) to determine the intensity, movement, and type of precipitation, as well as the velocity of winds moving toward or away from the radar site (Doppler effect).
The primary WSR-88D stations covering Southern California include:
- KSOX (Santa Ana Mountains / Orange County): Positioned strategically to cover the Los Angeles basin, Orange County, and coastal waters, providing critical data on approaching Pacific frontal systems and atmospheric rivers.
- KVTX (Ventura / Oxnard): Monitors the Santa Barbara channel, Ventura County, and the western portions of Los Angeles County, offering vital early warnings for flash floods in burn scar areas.
- KNKX (San Diego / Miramar): Covers San Diego County, Imperial County, and the international border region, tracking coastal storms and monsoonal moisture pushing up from Mexico.
- KEYX (Edwards Air Force Base): Focuses on the Mojave Desert, Antelope Valley, and high desert corridors, detecting high-wind events and localized desert convection.
Operating these systems requires calibration for unique regional phenomena. The coastal mountains frequently cause beam blockage, requiring meteorologists to look at multi-radar mosaics to fill gaps in low-level coverage caused by terrain masking.
Technical Specifications and Radar Products for 2026 Analysis
Modern meteorological software and web platforms allow users to view dual-polarization (dual-pol) radar data, which revolutionized forecasting accuracy by transmitting both horizontal and vertical pulses. This technology gives forecasters a 3D shape of precipitation particles, allowing them to differentiate between heavy rain, hail, snow, and non-meteorological targets like biological flocks or smoke plumes.
Key Operational Metrics: Dual-polarization radar introduces specific products such as Correlation Coefficient (CC), Differential Reflectivity (ZDR), and Specific Differential Phase (KDP). These metrics allow real-time identification of debris balls in tornadoes and precise rainfall-rate estimations during intense atmospheric river events.
To maximize the utility of Southern California Doppler feeds, users must analyze several standard base products:
- Base Reflectivity (N0Q): Measures the intensity of precipitation in decibels relative to z (dBZ). Higher dBZ values (reds and purples) indicate heavy downpours, small hail, or intense convective cores.
- Base Velocity (N0V): Displays the speed and direction of wind relative to the radar site. Green hues indicate winds moving toward the radar, while red hues indicate winds moving away. This is vital for detecting microbursts and rotation in severe thunderstorms.
- Hydrometeor Classification (HCA): Uses computer algorithms to categorize radar returns into physical types such as drizzle, heavy rain, biologicals, or ground clutter, reducing false alarms during critical weather events.

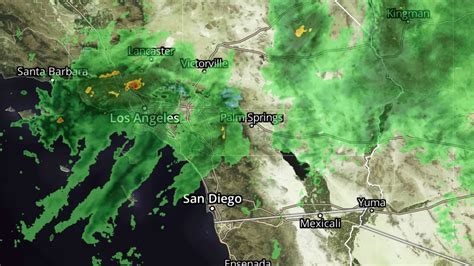

Southern California weather forecast - NBC4 Los Angeles
Geographic Vulnerabilities and Microclimate Coverage Challenges
Southern California weather is notoriously localized. A storm dropping a foot of snow in the San Bernardino Mountains can simultaneously produce dense fog in the Inland Empire and bright sunshine in downtown Los Angeles. This variability creates unique challenges for radar interpretation.
Topographic Obstructions and Beam Over-Shooting
Because the curvature of the Earth causes radar beams to rise higher above the ground at greater distances from the transmitter, distant locations—especially deep mountain valleys or low-lying coastal pockets—can experience beam over-shooting. A radar beam originating from KSOX might sail thousands of feet above a low-altitude drizzle in the Coachella Valley, missing light precipitation entirely.
Urban Heat Islands and Orographic Enhancement
Urbanization across the Los Angeles basin alters local thermodynamic profiles, while the San Gabriel and San Bernardino mountain ranges force moist marine air upward through orographic lift. This forced ascent rapidly condenses moisture, producing intense localized rain showers that can catch commuters off guard. Real-time radar monitoring is the primary tool used by emergency services to issue timely flash flood warnings for urban wash areas and recent burn scars.
Comparative Overview of Southern California Radar Access Platforms
Accessing reliable radar data requires selecting the right platform based on your technical needs, refresh rates, and geographic focus. The following table compares the primary channels available to the public and professionals in 2026.
| Platform / Source | Refresh Rate | Data Resolution | Best Suited For | Key Limitations |
|---|---|---|---|---|
| NWS Official Viewers (Radar.weather.gov) | 4 to 6 minutes | High (Raw WSR-88D base data) | General forecasting, meteorologists, researchers | Interface can be complex for casual users |
| Commercial Weather Apps (e.g., RadarOmega, RadarScope) | Real-time / Varies | Ultra-high (Level II data access) | Storm spotters, aviation, outdoor enthusiasts | Subscription fees required for advanced features |
| Local Broadcast Media Feeds (TV station apps) | Variable (Often accelerated) | Moderate | General public, quick commuter updates | Often cluttered with commentary and advertisements |
| FAA Terminal Doppler (TDWR) Feeds | 1 to 2 minutes | High (Low-altitude focus) | Airport operations, severe wind shear tracking | Limited geographic coverage near major hubs only |
Step-by-Step Guide to Interpreting Southern California Storms
When a winter storm or summer monsoonal surge approaches Southern California, tracking its progress effectively requires a systematic approach. Follow this workflow to evaluate threats using any standard dual-pol radar viewer:
- Step 1: Check Regional Composite Views. Start with a regional mosaic covering the entire Southern California bight to observe the trajectory of the primary jet stream and incoming frontal boundaries.
- Step 2: Isolate the Local Radar Station. Switch to the specific local station (such as KSOX or KVTX) that provides the clearest line of sight to your exact target area, minimizing terrain blockage interference.
- Step 3: Analyze Base Reflectivity for Intensity. Look at the dBZ values. Yellows and light reds indicate heavy rain capable of producing localized urban street flooding. Purples and whites indicate potential hail or embedded thunderstorm activity.
- Step 4: Cross-Reference with Velocity Data. Toggle to the Base Velocity product. Look for couplets—adjacent areas of bright red and bright green—which indicate strong rotational shear or powerful straight-line winds racing down mountain passes.
- Step 5: Review Correlation Coefficient (CC) for Debris. During high-wind or severe convective events, check the CC product. A sudden drop in CC values within a storm core often signifies non-meteorological targets, such as lofted tree branches, roof tiles, or wildfire ash.
Frequently Asked Questions
Why does Southern California radar sometimes show green echoes when it is completely sunny outside?
Clear-air mode or biological returns often cause false echoes on radar screens. When precipitation is absent, the radar sensitivity is increased, frequently detecting swarms of insects, birds, or marine layer sea salt particulate drift, which appear as weak, stationary speckles.
How can I track flash flood risks near recent wildfire burn scars?
NWS radar viewers offer specialized flash flood monitoring overlays and specific storm-track polygons. By zooming in on burn scar regions in the San Gabriel or Santa Ana mountains, residents can track precisely when intense rain cells cross fragile slopes.
Are commercial weather apps as accurate as official NWS Doppler data?
Yes, most high-end commercial weather applications ingest raw Level II data directly from the same WSR-88D network used by the National Weather Service. The primary difference lies in the rendering software, user interface, and customization options available to the end user.
Why do some coastal areas in Southern California experience radar coverage gaps?
The steep mountain ranges surrounding the Los Angeles basin act as physical barriers that block radar beams. Areas directly behind major ridges or deep within coastal canyons may experience reduced low-level data fidelity, requiring forecasters to blend data from multiple adjacent radar sites.
What is the difference between reflectivity and velocity products?
Reflectivity measures the amount of microwave energy bounced back to the radar antenna, indicating the concentration and size of precipitation particles. Velocity measures the Doppler frequency shift of the returning signal, revealing how fast and in what direction the wind and precipitation are moving relative to the radar site.
Optimizing Your Severe Weather Preparedness
Staying ahead of dynamic weather events in Southern California requires proactive monitoring and robust emergency planning. Whether you are managing coastal operations, navigating mountain passes, or securing urban infrastructure, pairing real-time Doppler radar analysis with official alerts from the National Weather Service ensures maximum safety. Keep mobile applications updated, configure push notifications for severe weather warnings in your specific zip code, and maintain situational awareness throughout every meteorological season.
