U.S. General Replacement Drawer Slides: The 2026 Ultimate Upgrade Guide

U.S. General replacement drawer slides specifically refer to the heavy-duty hardware components manufactured for Harbor Freight's popular line of modular tool chests, roller cabinets, and service carts.

Maintaining a heavy-duty tool storage system requires reliable mechanical components, especially when dealing with the high-load environments typical of professional automotive shops and advanced home garages. Harbor Freight's U.S. General tool chests (spanning Series 2 and Series 3 models) have earned a reputation for exceptional value, but extreme weight loads, repetitive cycles, and environmental grit can eventually degrade slide performance. Sourcing and installing accurate replacement drawer slides ensures your investment retains its structural integrity, smooth motion, and weight capacity well through 2026 and beyond.

Anatomy of U.S. General Tool Storage Drawer Hardware

Understanding the mechanics of your tool chest hardware prevents mismatched purchases and structural failures. Unlike standard residential kitchen drawer tracks, U.S. General tool chest slides are engineered for extreme dynamic loads, frequently supporting upwards of 100 to 200 pounds per drawer when fully loaded with sockets, wrenches, and diagnostic gear.

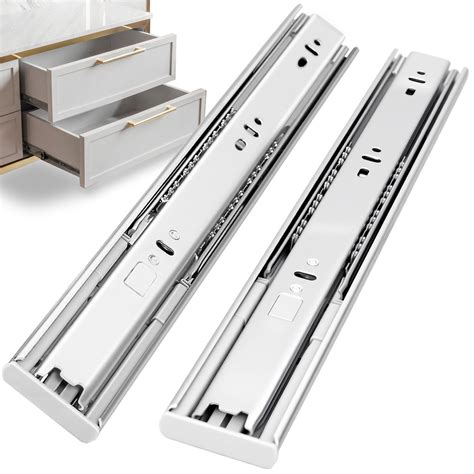

The primary slide assembly consists of an outer member mounted to the cabinet wall, an intermediate member, and an inner member secured to the drawer side. High-end industrial tool chests rely on full-extension ball-bearing slides. These assemblies utilize hardened steel ball bearings housed in precision cages to distribute weight evenly across the track channels.

When evaluating wear and tear, several components typically require inspection:

• Ball Retainers: Plastic or steel cages that keep bearings spaced evenly; failure leads to bunching and binding.
• Release Latches: The positive-latch mechanism that prevents drawers from rolling open unexpectedly during transport or cabinet repositioning.
• Mounting Tabs: Precision-punched steel tabs and screw holes that interface directly with the factory-welded cabinet studs.
• Lubrication Film: Factory grease that captures metallic debris and sawdust over time, requiring periodic cleaning and re-application.

Identifying Your Specific U.S. General Series and Slide Dimensions

Finding the correct replacement hardware requires matching your exact tool chest generation. Harbor Freight has iterated significantly on its U.S. General lineup, meaning that Series 2 and Series 3 components are rarely cross-compatible without modification.

Before ordering or requesting warranty replacements, verify your cabinet model. Look at the badge on the front of the cabinet and measure your drawer depth. Standard U.S. General cabinets—such as the popular 26-inch, 44-inch, 56-inch, and 73-inch roller cabinets—utilize varying slide lengths depending on whether the drawer is a shallow top drawer, a medium utility drawer, or a deep bottom storage bin.

Measurement Best Practices: Always measure the slide length from the extreme back end to the front mounting bracket, excluding the front face trim. Disassembling at least one existing slide set to check the hole pattern ensures alignment with factory interior chassis studs.

Sourcing Options: Warranty Claims vs. Aftermarket Upgrades

When your slides fail, you have two primary routes for remediation: filing a warranty claim through the retailer or sourcing heavy-duty aftermarket equivalents.

Harbor Freight tools backed by a hand tool or storage warranty typically qualify for replacement parts directly through customer service or local store managers, provided you can supply the original receipt or lookup via your membership profile. However, if you are upgrading an older cabinet to handle heavier loads—such as organizing dense metric socket sets and pneumatic impact guns—aftermarket commercial slides may provide a superior performance tier.

Warranty Replacement Protocol

1. Locate Proof of Purchase: Retrieve your receipt, digital purchase history, or Inside Track Club membership records.
2. Identify Part Numbers: Consult the exploded-view parts diagram in your cabinet's manual to find the exact part number for the left and right slides.
3. Contact Customer Support: Provide the serial number found on the rear rating plate of your tool chest to expedite fulfillment.

Aftermarket Industrial Slides

If opting for third-party heavy-duty slides (from brands like Accuride or generic industrial suppliers), verify the side-space clearance. U.S. General drawers typically demand a strict 1/2-inch clearance on each side between the drawer box and the cabinet wall. Exceeding this tolerance causes binding, while under-specifying leads to loose, sloppy drawers.

Step-by-Step Installation Guide for U.S. General Drawer Slides

Replacing damaged slides is a straightforward maintenance procedure requiring only basic hand tools, a helper, and safety equipment.

Required Tools and Equipment

• Cordless drill with driver bits
• Metric hex key set and screwdrivers
• Soft mallet or dead-blow hammer
• Clean shop rags and multi-purpose degreaser
• High-pressure synthetic grease or white lithium grease
• Safety glasses and work gloves

Step 1: Empty and Remove the Affected Drawer

Pull the drawer out to its maximum extension. Locate the black plastic release levers on either side of the slide rails. Push the left lever down while pulling the right lever up simultaneously to disengage the inner slide members from the intermediate tracks. Carefully lift the drawer straight out of the cabinet and set it on a padded workbench to prevent scratching the powder-coated finish.

Step 2: Extract the Damaged Slide Assemblies

Using your screwdriver or drill, remove the screws securing the slide tracks to the interior cabinet walls and the sides of the drawer box. Keep track of all factory fasteners, as stripping the factory threaded holes complicates reassembly. Pull the old slide members clear of the chassis.

Step 3: Inspect and Clean Chassis Mounting Points

Before installing the new hardware, wipe down the interior cabinet walls using a degreaser. Inspect the mounting studs and sheet metal tabs for stress fractures or warping caused by overloading. If a mounting tab is bent, gently tap it back into alignment with a soft mallet.

Step 4: Mount the New Slides to the Cabinet and Drawer Box

Attach the new cabinet-side members to the interior wall studs, ensuring they sit level and square. Next, mount the corresponding drawer-side members to the exterior walls of the drawer box. Double-check that left and right slides are not inverted, as this prevents the positive-latch mechanism from engaging correctly.

Step 5: Align and Test the Slide Engagement

Carefully align the drawer-side rails with the intermediate cabinet tracks. Push the drawer inward slowly until you feel resistance. Do not force the mechanism. Listen for the distinct click of the safety latches engaging. Run the drawer through 5 full open-and-close cycles to ensure smooth, binding-free travel. Apply a thin film of synthetic grease to the ball-bearing raceways for optimal long-term performance.

Pros and Cons of Upgrading vs. Replacing Tool Chest Hardware

Expert Maintenance Warning: Never mix and match slide brands or generations on the same drawer. Slight discrepancies in ball bearing diameter or rail thickness will bind the drawer mechanism and prematurely destroy the tracks.

Evaluating whether to repair your current U.S. General storage system involves balancing cost, time, and performance expectations.

• Pros of Repairing/Upgrading Slides:




  • Restores factory-smooth rolling action at a fraction of the cost of a new 56-inch or 73-inch roller cabinet.
  • Allows customization with heavier-duty commercial slides for extreme weight tolerances.
  • Keeps perfectly sound powder-coated steel chassis out of landfills.

• Cons of Repairing/Upgrading Slides:




  • Sourcing exact factory replacements for discontinued Series 1 or early Series 2 models can involve lengthy wait times.
  • Misaligned installation can permanently scar the drawer box slides or cabinet interior walls.
  • Time-intensive process when servicing multi-drawer rolling cabinets with 15 or more individual storage bays.

Frequently Asked Questions

Are Series 2 and Series 3 U.S. General drawer slides interchangeable?

No, Series 2 and Series 3 slides are generally not interchangeable due to redesigns in drawer depth, latch styles, and cabinet wall mounting hole spacing. Always verify your specific cabinet series before purchasing replacement components.

What is the standard weight capacity of a U.S. General replacement slide?

Standard factory replacement slides for U.S. General cabinets are rated between 100 and 200 pounds per pair, depending on whether the drawer is a shallow accessory drawer or a deep bottom chest drawer designed for heavy power tools.

How do I fix a U.S. General drawer that won't stay closed?

A drawer that drifts open usually indicates a worn-out or misaligned positive-latch mechanism, or accumulated debris inside the rear plastic detent clip. Remove the drawer, inspect the plastic release clips for breakage, and clean out any metal shavings or dust obstructing the track.

Can I upgrade my U.S. General slides to soft-close hardware?

While some aftermarket universal slides offer soft-close functionality, retrofitting them into a U.S. General cabinet often requires drilling new mounting holes and may alter the precise side-to-side clearance required for proper drawer operation.

Where is the serial number located on a U.S. General tool chest?

The serial number and exact model identification plate are typically stamped onto a metal badge or foil sticker located on the exterior rear panel of the roller cabinet or top chest.

How often should I lubricate my tool chest drawer slides?

Inspect and clean your drawer slides every 12 to 18 months. Wipe away old, contaminated grease with a shop towel and apply a thin layer of clean, synthetic lithium or multi-purpose grease to the ball bearing tracks to maintain effortless operation.

Securing Long-Term Performance for Your Workspace

Maintaining a professional workshop requires attention to the smallest mechanical details. By accurately identifying your hardware generation, following meticulous installation steps, and performing routine preventative maintenance, your U.S. General tool storage system will continue to operate with factory precision. Protect your tool investment, eliminate frustrating drawer binds, and keep your workspace operating at peak efficiency.
