Fixed Radio Stations In Air Traffic Control: 2026 Infrastructure And Operations Guide

Fixed radio stations serve as the foundational voice and data link between ground controllers and aircraft in flight, forming an indispensable pillar of modern airspace management. Within the complex architecture of air traffic control (ATC), these ground-based transceivers bridge the gap between regional facilities, control towers, and the national airspace system. Maintaining absolute continuity of operations requires advanced hardware redundancy, robust frequency spectrum allocation, and precise engineering standards that align with contemporary Federal Aviation Administration (FAA) and International Civil Aviation Organization (ICAO) mandates.

Core Architecture and Technical Specifications of Fixed ATC Radio Systems

The engineering behind fixed radio stations requires strict adherence to reliability metrics, signal propagation physics, and hardware durability. Unlike mobile or temporary communications units, fixed installations are engineered for continuous 24/7/365 operation under extreme environmental conditions.

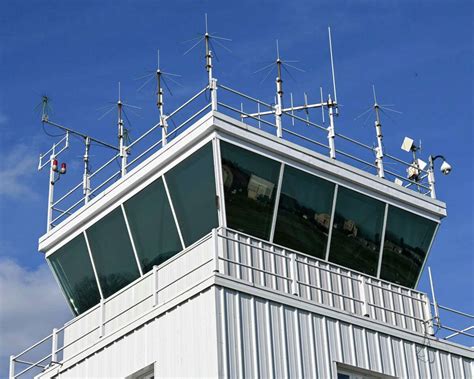

Communication relies primarily on Very High Frequency (VHF) for terminal and en-route domestic operations, spanning the 118.000 MHz to 136.975 MHz spectrum, and Ultra High Frequency (UHF) spanning 225.000 MHz to 400.000 MHz for military and specialized governmental applications. Fixed installations utilize high-gain omnidirectional antennas mounted on towers ranging from 50 to over 300 feet, strategically placed to eliminate line-of-sight radar and radio shadows caused by terrain or urban infrastructure.

Transmitter power output typically ranges from 50 watts to 500 watts, depending on whether the station supports local tower operations or wide-area remote communications facilities (RCF). Receiver sensitivity must be exceptionally high, often exceeding -107 dBm, to capture weak signals from aircraft operating at the outer fringes of sector coverage.

Operational Reliability Standards Fixed radio stations utilized in critical air traffic management frameworks must achieve a minimum operational availability of 99.999 percent. This five-nines reliability standard requires automated switchover to secondary backup transmitters, uninterruptible power supplies (UPS), and dedicated diesel generator failover systems within milliseconds of a primary grid disruption.

Integration with En-Route and Terminal Automation Systems

Fixed radio stations do not operate in a vacuum; they integrate directly with voice communication control systems (VCCS) and automated air traffic management platforms. Controllers manage these remote radio sites through digital interfaces that allow instantaneous frequency selection, cross-coupling, and emergency override capabilities.

The integration pipeline depends on robust data backhauls, which historically utilized copper landlines but have transitioned heavily toward secure fiber-optic networks and microwave relay links. This transition minimizes latency to under 50 milliseconds, ensuring that a controller's voice instruction reaches the cockpit without perceptible delay.

• Remote Communications Facility (RCF): Unstaffed radio sites strategically positioned across rugged terrain or oceanic boundaries to extend controller reach.
• Direct User Access Terminal (DUAT) Integration: Automated systems allowing flight crews to pull pre-departure clearances and meteorological data through digital radio links.
• Voice Over Internet Protocol (VoIP) Migration: The ongoing 2026 industry-wide migration from analog audio routing to ED-137 compliant VoIP standards, ensuring enhanced interoperability and cybersecurity across multi-agency facilities.

Comparative Analysis of ATC Radio Frequencies and Infrastructure

Understanding the nuances of fixed station deployments requires evaluating the operational differences between VHF and UHF bands, alongside traditional analog versus modern digital architectures.

Maintenance Protocols and Troubleshooting Procedures

Maintaining fixed radio stations demands rigorous preventative maintenance schedules and rapid troubleshooting protocols to prevent airspace sector blackouts. Technicians must balance hardware longevity with compliance updates dictated by aviation regulatory bodies.

Step-by-Step Field Troubleshooting Workflow

1. Alarm Triage: Monitor Network Management Systems (NMS) for real-time telemetry alerts indicating VSWR (Voltage Standing Wave Ratio) mismatches, power amplifier failures, or receiver desensitization.
2. Remote Diagnostics: Execute software-defined loopback tests through the VCCS interface to isolate whether the fault originates at the controller console, the communication multiplexer, or the remote radio site.
3. Site Inspection & Hardware Swapping: Dispatch certified technicians to the physical fixed station shelter to inspect lightning protection, coaxial cable integrity, and solid-state amplifier modules.
4. RF Spectrum Analysis: Deploy portable spectrum analyzers to scan for unauthorized carrier signals, intentional jamming, or intermodulation distortion bleeding into assigned control frequencies.
5. System Calibration: Re-calibrate transmitter deviation, squelch thresholds, and audio frequency response curves prior to returning the channel to active operational status.

Advantages and Operational Challenges of Distributed Fixed Radio Networks

Deploying and managing a network of fixed radio stations involves distinct strategic trade-offs between coverage expansion, capital expenditure, and electromagnetic spectrum congestion.

Advantages

• Extended Airspace Coverage: Enables seamless controller-to-pilot communication across mountainous regions, vast oceanic sectors, and low-altitude rural corridors.
• Redundancy and Resilience: Distributing transmitters across multiple geographical nodes ensures that the failure of a single station does not compromise entire sector safety.
• Scalability: Modern software-defined radio (SDR) architectures allow facilities to remotely update frequency allocations and modulation schemes without replacing physical mast hardware.

Operational Challenges

• Spectrum Crowding: The finite nature of the VHF aviation band creates persistent congestion challenges, requiring aggressive frequency re-farming and channel-splitting initiatives.
• High Maintenance Overhead: Remote physical sites demand continuous logistical support, helicopter transport for remote mountain installations, and rigorous climate control maintenance for equipment shelters.
• Electromagnetic Interference (EMI): Proximity to commercial cellular towers, wind turbines, and industrial solar farms introduces persistent background noise that degrades receiver sensitivity.

Frequently Asked Questions

What is the primary function of a fixed radio station in air traffic control?

Fixed radio stations provide continuous, reliable voice and data communication links between ground-based air traffic controllers and airborne aircraft. These permanent ground installations ensure uninterrupted command and control across terminal and en-route airspace sectors.

Why do air traffic control radio stations use AM instead of FM?

Air traffic control relies on Amplitude Modulation (AM) because it allows multiple aircraft to transmit on the same frequency simultaneously without blocking each other out completely. When simultaneous transmissions occur on AM, controllers hear a heterodyne squeal and can distinguish that multiple stations are transmitting, whereas FM capture effect would completely suppress the weaker signal.

How do fixed radio stations survive power outages?

Fixed radio stations are equipped with multi-tiered power redundancy systems, including automatic transfer switches, high-capacity battery uninterruptible power supplies (UPS), and automated diesel generators that engage within seconds of grid failure.

What is the typical communication range of a fixed VHF air traffic station?

The communication range of a fixed VHF station is strictly line-of-sight, heavily dependent on altitude. While an aircraft on the ground may only reach a station within 30 to 50 miles, an aircraft cruising at 35,000 feet can routinely establish clear communication at distances exceeding 150 to 200 nautical miles.

How is the aviation radio spectrum protected from interference?

National regulatory agencies and international bodies strictly license and monitor the aviation frequency bands, backed by real-time spectrum monitoring equipment and swift legal penalties for unauthorized transmissions or equipment harmonics.

What role do Voice Communication Control Systems (VCCS) play?

VCCS act as the digital switching fabric that connects air traffic controllers' headsets directly to specific fixed radio transmitters and receivers across multiple remote geographical sites.

Conclusion and Operational Strategy

Fixed radio stations remain the unyielding bedrock of global air aviation safety, transforming theoretical airspace designs into practical, voice-managed operational realities. As the aviation industry modernizes through digital data links and VoIP integration, engineering teams must maintain rigorous adherence to hardware redundancy, spectrum purity, and proactive maintenance workflows. Facility managers and communications engineers should continuously audit their remote site infrastructures, update lightning protection systems, and transition legacy analog nodes to secure, high-availability digital architectures to meet the rigorous demands of modern airspace navigation.
