Mastering Conduit Multipliers For Electrical Installations In 2026
The term "conduit multipliers" refers exclusively to the geometric constants used in electrical conduit bending to achieve precise offsets and saddles. This guide focuses on the technical application of these multipliers within the framework of the 2026 National Electrical Code (NEC) and standard rigid and EMT conduit bending practices.
The Physics of Conduit Bending and the Role of Multipliers
Accurate conduit bending is a fundamental skill for commercial and industrial electricians. When a conduit run encounters an obstruction, it is necessary to transition the path using an offset. The multiplier is the mathematical ratio between the length of the conduit required to span a specific distance and the depth of the offset itself.
By applying these constants, a technician ensures that the conduit accurately clears an obstruction while maintaining the intended bend angle. Using incorrect multipliers leads to "spring-back" errors and misaligned knockouts in enclosures, necessitating costly material waste and re-work. In 2026, as precision manufacturing requirements tighten for high-density data centers and industrial automation facilities, the mastery of these geometric factors is non-negotiable for project compliance.

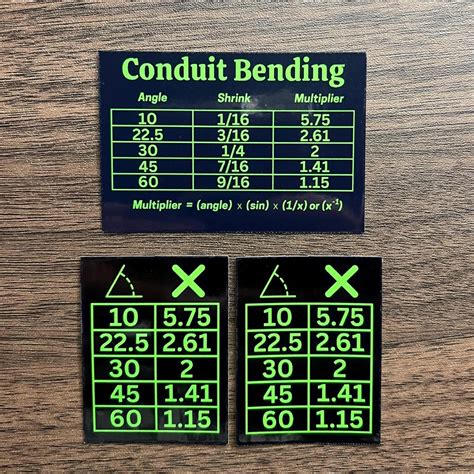

Standard Multiplier Chart for 2026 Electrical Construction
Precision in bending relies on selecting the correct multiplier based on the desired angle of the offset. Most professional hand benders and electric benders are calibrated for standard angles.
| Degree of Bend | Multiplier (Decimal Equivalent) | Application Note |
|---|---|---|
| 10 Degrees | 5.76 | Best for shallow, long-run obstructions |
| 22.5 Degrees | 2.61 | Standard for tight, medium-clearance needs |
| 30 Degrees | 2.00 | Most common industry standard for offsets |
| 45 Degrees | 1.41 | High-clearance offset, requires more length |
| 60 Degrees | 1.15 | Rare; used for extremely tight space constraints |
Operational Best Practices for Bend Accuracy
Verify Bending Degree Always confirm the degrees marked on your bending tool. While modern digital angle finders have reduced human error, the physical radius of the shoe must match the specific conduit trade size and wall thickness to ensure the multiplier remains accurate.
Account for Spring-back Metal conduit possesses inherent elasticity. Even in 2026, regardless of the quality of the aluminum or steel alloy, all conduits exhibit spring-back. Always over-bend by approximately one to two degrees to compensate for the material tension, ensuring the final installed angle lands exactly on the target.

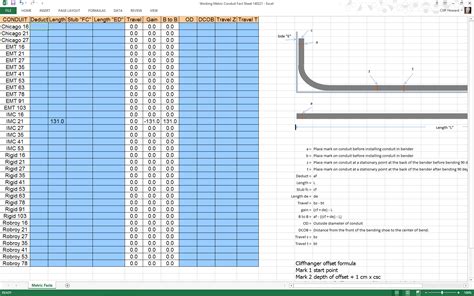

Calculating Offsets: The Step-by-Step Procedure
To calculate the length required for an offset, follow this systematic approach to eliminate guesswork.
- Measure the obstruction depth: Use a laser level or precision tape measure to determine the total distance from the center of the conduit path to the peak of the obstruction.
- Determine the angle: Select an angle based on the available space in the run. If the run is tight, a 10-degree bend requires a longer length of conduit but creates a shallower offset.
- Apply the multiplier: Multiply the obstruction depth by the constant found in the chart above.
- Mark the conduit: Measure from the end of the conduit to the first bend point. The distance between the first and second bend is determined by your calculated "distance between bends."
- Execute the bend: Always prioritize the first bend as the primary reference point. Use a level to ensure the offset plane is true to the mounting surface.
Technical Challenges and Mitigation in Modern Installations
In 2026, the complexity of electrical systems has increased, particularly with the rise of integrated building management systems (BMS) and large-scale renewable energy distribution. Conduit runs are frequently more congested than in previous decades.
- Congestion Management: When running multiple conduits in parallel, the multipliers must be adjusted for every subsequent conduit to account for the increasing radius of the offset. This is known as "gain." Failure to calculate gain will result in the outer conduits being shorter than the inner conduits.
- Material Integrity: Using high-strength rigid metal conduit (RMC) requires more physical force. Ensure that the mechanical bending equipment is inspected for 2026 OSHA safety compliance before initiation to prevent kinetic failure of the bending shoe.
- NEC Compliance: Article 344 and Article 358 of the 2026 NEC mandate that the internal cross-sectional area of the conduit must not be compromised by the bending process. If a bend causes visible kinking or flattening exceeding 10% of the conduit's diameter, the segment must be replaced to prevent wire insulation damage during the pulling process.
Comparing Traditional Bending vs. Prefabricated Segments
For large-scale commercial projects in 2026, contractors often debate the utility of manual bending versus the use of prefabricated elbows and offsets.
- Manual Bending: Offers the highest degree of customization and allows for immediate adjustments to unforeseen site conditions. However, it requires a highly skilled labor force and takes more time per foot of installed conduit.
- Prefabricated Offsets: Significantly faster for repetitive, high-volume tasks. They ensure uniformity across large runs but provide zero flexibility when the actual site measurements deviate even slightly from the construction drawings.
If your installation involves custom heights or non-standard obstruction paths, manual calculation using the established multipliers remains the gold standard for quality assurance.
Frequently Asked Questions Regarding Conduit Multipliers
Why do I need a different multiplier for 30 degrees versus 45 degrees? The multiplier is derived from the cosecant of the angle. As the angle increases, the hypotenuse of the triangle formed by the offset shortens, necessitating a lower multiplier to achieve the same depth of offset.
Can I use these multipliers for PVC-coated rigid conduit? Yes, the geometric principles remain identical, but you must account for the thickness of the PVC coating when measuring the offset depth. The coating adds a variable "buffer" that can lead to slight measurement errors if not factored into the total depth.
How does "gain" affect my multiplier calculations? Gain is the difference between the distance measured along the conduit and the straight-line distance between two points. When bending multiple conduits, the inner radius has less gain than the outer radius, requiring you to add incremental length to the outer conduits in the group.
Are there digital tools that eliminate the need for manual calculations in 2026? While various mobile applications and Bluetooth-enabled laser levels provide automated bending solutions, these tools are aids, not replacements for fundamental knowledge. Proficiency in manual calculation is required for site certification and troubleshooting when digital devices fail or lose calibration.
What is the most common mistake made when using multipliers? The most frequent error is measuring from the wrong point on the conduit shoe. Always identify the "arrow" or "star" mark on your specific bending tool; failing to align these marks with your calculated measurement points is the primary cause of inaccurate offsets.
Should I use these multipliers for EMT and Rigid conduit interchangeably? The geometric multipliers are mathematically universal and apply to both EMT and Rigid conduit. However, the bending technique differs due to the wall thickness; Rigid conduit requires mechanical benders or heat for larger diameters, whereas EMT can be hand-bent up to 1-1/4 inches.
Professional Implementation Strategy
Successful electrical infrastructure depends on the marriage of theoretical geometry and physical execution. By consistently applying these multipliers, your installation will not only meet the 2026 NEC safety standards but will also exhibit the professional craftsmanship required for high-visibility commercial environments. Always verify your site conditions, calculate your offsets before beginning the bend, and ensure your equipment is calibrated to current year safety specifications. For complex or high-stakes industrial runs, perform a test bend on scrap material to verify your spring-back factor before proceeding with expensive conduit stock.
