Comprehensive Guide To Scanner Codes And OBD-II Diagnostics In 2026
Vehicle diagnostics have evolved significantly, making scanner codes an essential component of modern automotive maintenance and repair. When your dashboard illuminates with a Check Engine Light, your vehicle's On-Board Diagnostics system records specific alphanumeric sequences known as Diagnostic Trouble Codes. Understanding these codes empowers vehicle owners, technicians, and fleet managers to pinpoint mechanical and electrical anomalies efficiently. As automotive technology incorporates advanced driver-assistance systems and electric powertrains, diagnostic tools and code interpretations must adapt to maintain vehicle safety and compliance.
Understanding the Architecture of Automotive Diagnostic Trouble Codes
Diagnostic Trouble Codes operate as a standardized language established by the Society of Automotive Engineers and the International Organization for Standardization. Every code consists of a single letter followed by four digits, creating a systematic categorization of vehicle faults. This standardization ensures that a specific code retrieved from a sedan manufactured in Asia corresponds to the same operational failure on a truck manufactured in North America.
The prefix letter immediately identifies the broad vehicle system experiencing the malfunction:
- P (Powertrain): Covers the engine, transmission, and associated emissions management systems.
- C (Chassis): Encompasses mechanical systems outside the engine bay, including antilock braking systems, steering, and suspension.
- B (Body): Relates to components inside the passenger compartment, such as airbag modules, climate control, and power windows.
- U (Network): Indicates communication failures between various computer modules within the vehicle multiplex network.
Following the letter, the first digit specifies whether the code is generic or manufacturer-specific. A digit of zero indicates a generic SAE-mandated code applicable to all OBD-II compliant vehicles, while a digit of one designates an enhanced code defined exclusively by the vehicle manufacturer to monitor proprietary sub-systems.
Decoding the Anatomy of Powertrain Faults
Powertrain codes represent the vast majority of diagnostics performed in daily automotive service. The third and fourth digits of a powertrain code pinpoint the specific circuit, sensor, or actuator experiencing a fault. For instance, codes ranging from P0100 through P0199 directly reference fuel and air metering anomalies, such as Mass Air Flow sensor failures or manifold absolute pressure discrepancies.
| Code Range | Primary Vehicle System | Common Failure Examples |
|---|---|---|
| P0300 - P0399 | Ignition System and Misfire Detection | Random cylinder misfire, faulty spark plugs, failing ignition coils |
| P0400 - P0499 | Auxiliary Emission Controls | Exhaust Gas Recirculation valve blockages, EVAP system leaks, catalytic efficiency below threshold |
| P0700 - P0799 | Transmission Control System | Solenoid performance issues, torque converter clutch failures, fluid pressure drops |
| P2000 - P2099 | Diesel Particulate Filter and NOx Controls | DPF regeneration failures, selective catalytic reduction fluid pressure faults |
Modern diagnostic scanners do more than simply display these numerical sequences. Advanced tools provide freeze-frame data, capturing the exact engine RPM, coolant temperature, vehicle speed, and load percentage at the exact millisecond the fault occurred. This supplementary data stream is invaluable for diagnosing intermittent issues that fail to manifest continuously during a standard road test.
Police Radio Codes Philadelphia at Mary Jorgenson blog
Step-by-Step Procedure for Retrieving and Clearing Scanner Codes
Successfully diagnosing a vehicle requires a methodical approach to reading, interpreting, and clearing trouble codes. Rushing to replace components based solely on a retrieved code often leads to wasted time and unnecessary financial expense.
- Locate the Data Link Connector: Find the 16-pin diagnostic port, typically situated beneath the driver-side dashboard near the steering column.

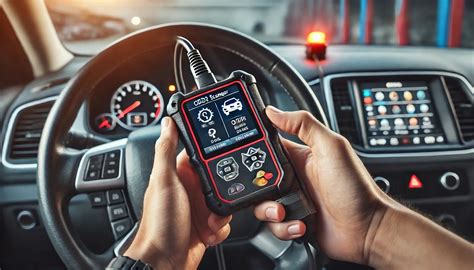

- Connect the Diagnostic Tool: Plug your OBD-II scanner or wireless Bluetooth adapter securely into the Data Link Connector while the vehicle ignition is in the accessory position with the engine off.
- Establish Communication: Turn the ignition to the ON position without starting the engine, and allow the scanner to handshake with the Powertrain Control Module to automatically read the Vehicle Identification Number and active codes.
- Record All Stored and Pending Codes: Document every active code, along with any pending codes that have not yet triggered the dashboard warning light, as well as freeze-frame snapshots.
- Consult Technical Service Bulletins: Cross-reference the retrieved codes against official manufacturer service documentation to identify known software updates or common mechanical failure points.
- Perform Physical Inspections: Inspect associated wiring harnesses, connectors, vacuum lines, and fuses before condemning expensive electronic control modules or sensors.
- Clear Codes and Verify Repair: After executing the necessary mechanical or electrical repairs, use the scanner to clear the diagnostic trouble codes and complete a mandatory driving cycle to ensure all monitors run to completion.
Advanced Diagnostic Strategies and Environmental Compliance
In 2026, environmental compliance testing heavily relies on the status of internal readiness monitors within the vehicle computer. When diagnostic codes are cleared, all readiness monitors reset to an incomplete status. Simply erasing codes to bypass an emissions inspection will result in an immediate test failure due to unset monitors.
Technicians must execute specific drive cycles—involving cold starts, steady-state highway cruising, and deceleration phases—to allow the vehicle computer to self-test emission-related components such as the oxygen sensors, catalytic converter, and evaporative system. Ignoring underlying mechanical issues while merely clearing codes will inevitably cause the Check Engine Light to return once the monitoring cycle runs and detects the persisting fault.
Professional Repair Insight: Always verify battery voltage before beginning any complex electrical diagnostics. Low system voltage from a degraded battery or compromised ground strap can trigger dozens of false communication and sensor voltage codes across multiple modules, leading technicians down incorrect diagnostic paths.
Frequently Asked Questions About Scanner Codes
What does it mean when a scanner code is marked as pending?
A pending code indicates that the vehicle computer has detected an irregular sensor reading during a single driving cycle, but the fault has not occurred frequently enough to illuminate the dashboard warning light. If the anomaly repeats during subsequent driving cycles, the pending code converts into a confirmed active code that triggers the Check Engine Light.
Can I drive my vehicle safely with an active powertrain code?
Safety depends entirely on the specific code retrieved and the symptoms exhibited by the vehicle. While a minor evaporative emissions leak code allows for safe driving, flashing misfire codes or low oil pressure codes require immediate cessation of driving to prevent catastrophic engine or catalytic converter damage.
Do inexpensive code readers provide the same information as professional-grade diagnostic tablets?
Basic code readers only retrieve and clear generic powertrain codes and basic freeze-frame data. Professional bi-directional diagnostic tools feature advanced capabilities, including actuation tests, module programming, live graphing of multiple sensor inputs, and access to chassis and body control modules.
Why does my scanner display a communication error when plugged into the car?
Communication errors typically stem from a blown cigarette lighter or auxiliary power outlet fuse, which frequently shares power circuits with the diagnostic port. Check your vehicle fuse box first, and ensure the scanner plug is firmly seated in the data link connector.
How do modern electric vehicles utilize diagnostic scanner codes?
Electric vehicles rely heavily on high-voltage battery management system codes, inverter diagnostics, and thermal management fault codes rather than traditional internal combustion engine parameters. Servicing these vehicles requires specialized high-voltage safety protocols alongside advanced diagnostic software.
